SB92/61P-4

SB92/61P-4

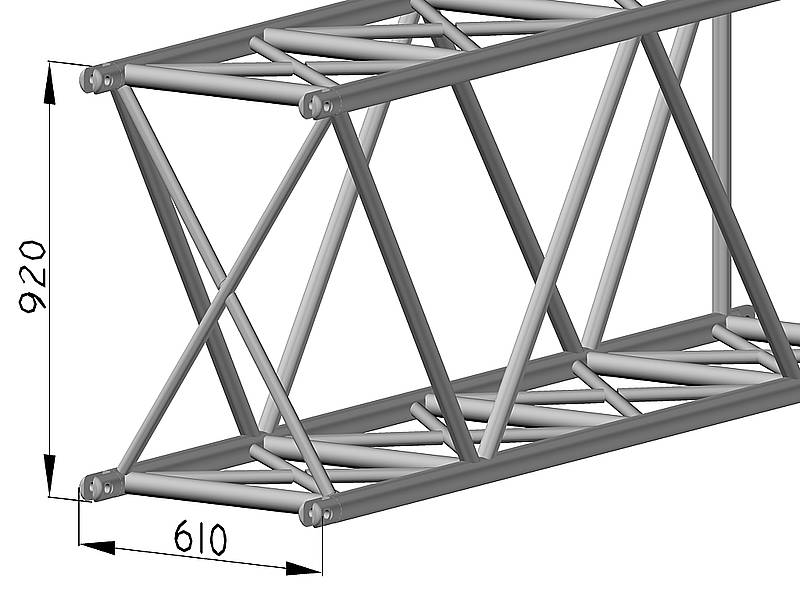

Abmessungen

Höhe920 mm
Breite610 mm
HauptgurteØ 60 x 5 mm
FachwerkØ 40 x 4 mm
Fachwerk 2Ø 30 x 3 mm
VerbindungGabelkopf verbohrt[?]
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.

Produktdatenblatt

Produktdatenblatt SB92/61P-4

Abmessungen

Höhe920 mm
Breite610 mm
HauptgurteØ 60 x 5 mm
FachwerkØ 40 x 4 mm
Fachwerk 2Ø 30 x 3 mm
VerbindungGabelkopf verbohrt[?]
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.

Eigengewicht von Standardelementen

Meter0,761,202,403,604,80
Kilo32,0037,0058,5080,00101,50

Tragkraft

Spannweite Unif. Distrib. load Mittige Punktlast 2-Punktlast, L=1/3 3-Punktlast, L=1/4 4-Punktlast, L=1/5
m kg/m mm kg mm kg (2x) mm kg (3x) mm kg (4x) mm
10,00900,4026,304679,9022,003509,9027,902340,0026,001950,0027,50
12,00643,7039,403862,3031,802896,7040,201931,1037,501609,3039,70
14,00467,5053,703272,4043,402454,3054,801636,2051,101363,5054,10
16,00353,1070,202824,9057,002118,6071,701412,4066,901177,0070,70
18,00274,7089,002472,2072,601854,2090,801236,1084,901030,1089,70
20,00218,60110,102186,0090,101639,50112,301093,00105,10910,80110,90
22,00177,10133,501948,00109,801461,00136,10974,00127,60811,70134,40
24,00145,50159,201746,40131,701309,80162,20873,20152,30727,60160,30
26,00121,00187,201572,50155,701179,40190,80786,30179,40655,20188,50
28,00101,50217,701420,60182,201065,50221,70710,30208,80591,90219,10
30,0085,70250,601286,20211,00964,70255,00643,10240,70535,90252,20
32,0072,90286,001166,00242,40874,50290,80583,00275,10485,90287,70
34,0062,20323,801057,60276,40793,20329,10528,80312,00440,70325,70
36,0053,30364,20958,90313,20719,20369,90479,50351,50399,50366,30
38,0045,70407,20868,50352,90651,30413,20434,20393,60361,90409,40
40,0039,30452,80785,00395,50588,80459,20392,50438,50327,10455,10
